Multipurpose Relay Test System
Model:RELAYSTAR-7000

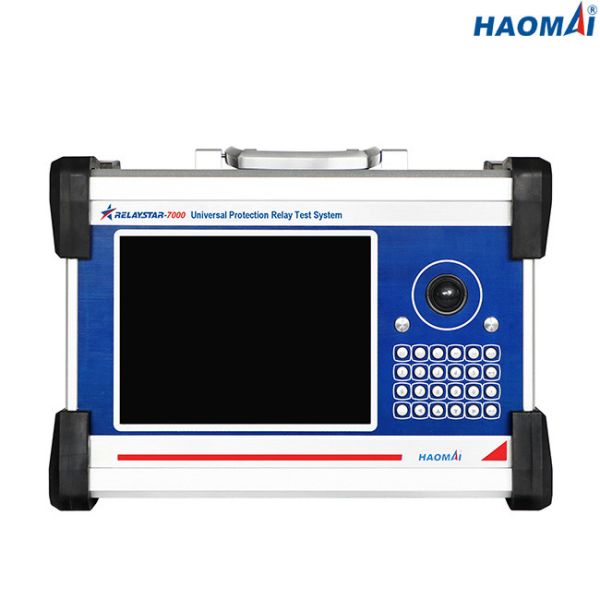

The RELAYSTAR-7000 is a multipurpose and field portable protection relay test system. The RELAYSTAR-7000 unit can be operated via the built-in industrial PC with 9.7-inch TFT LCD touch-screen, keypad and mouse, which allows the user to perform manual, steady state and dynamic testing quickly and easily. Test results can be saved in local memory, and then downloaded to a USB flash disk for test data transfer or to print test reports.
For fully automatic testing on a PC, each RELAYSTAR-7000 unit comes with an installation version of RELAYSTAR software. RELAYSTAR software is capable of running on a PC with Windows 10 operating system.
The RELAYSTAR-7000 is designed to test electro-mechanical, solid-state and microprocessor-based protective relays, IEC61850 IEDs and merging unit.
The RELAYSTAR-7000 also can be synchronized to perform end-to-end testing with the test sets allocated in different substations through its in-built GPS.
Main Features
●Capable of testing electro-mechanical, solid-state and microprocessor-based protective relays, IEC61850 IEDs and merging unit
●6-phase current(6×30A) + 6-phase voltage(6×150V) output
●Stand-alone operation using intuitive high resolution graphic TFT LCD screen, no PC required to operate
●PC remote test capability
●High current and high power
●In-built waveform monitoring and recording
●Dynamic GPS satellite synchronized end-to-end testing capability
●IEC61850 testing capability
Technical Data
General Current and Voltage Outputs
| Current Generator |
Setting range |
6-phase AC(L-N): 6x0…30A |
| DC(L-N): 6x0…±10 A |
| Power |
6-phase AC(L-N): 6x450VA at 30A |
| DC(L-N): 6x120VA at 10A |
| Accuracy |
AC:±1mA(≤0.2A), ≤0.1% (0.2~30A) |
| DC: ±5mA(0.2~0.5A), ≤0.2% (0.5~10A) |
| Resolution |
1mA |
| Voltage Generator |
Setting range |
6-phase AC(L-N): 6x0…150V |
| DC(L-N): 6x0…±160V |
| Power |
6-phase AC(L-N): 6x80VA at 150V |
| DC(L-N): 6x80VA at 160V |
| Accuracy |
AC:±2mV(0.2~2V), ≤0.1% (2~150V) |
| DC:±10mV (0.5~5V), ≤0.2% (5~160V) |
| Resolution |
1mV |
| General Generators |
Frequency |
range: 0~1200Hz |
| accuracy:<1mHz(0~65Hz), <10mHz(65~450Hz),<20mHz(450~1200Hz) |
| resolution: 0.001Hz |
| Phase |
range: -360° ~+360° |
| accuracy: 0.1° |
| resolution: 0.01° |
| Harmonic |
superposition order: 2~24 times |
| distortion: ≤0.5% |
Ethernet Communication Interfaces
| Mode |
10/100Base-TX(10/100Mbit,twisted-pair,auto-crossover) |
| Number of port |
2 |
| Type of interface |
RJ45 |
| Status indication |
LED lights |
Optical Fiber Communication Interfaces
| Mode |
100Base-FX (100Mbit, optical fiber, full duplex) |
| Number of port |
8 |
| Type of interface |
LC |
| Fiber type |
62.5/125μm(multi-mode fiber) |
| Wavelength |
1310nm |
| Transmission distance |
>1km |
| Status indication |
LED lights |
FT3 Interfaces
| Number of port |
9 (8 for transmitting, 1 for receiving) |
| Type of interface |
ST |
| Fiber type |
62.5/125μm (multi-mode fiber) |
| Wavelength |
850nm |
Binary Inputs
| Number |
8 |
| Type |
potential-free contact or idle contact (automatic identification) |
| Threshold characteristics |
“0”: 0～6V; “1”:12V～250V |
Binary Outputs
| Number |
4 |
| Type |
idle contact |
| Break capacity |
250VAC/0.5A; 250VDC/0.2A |
In-built Monitoring and Recording
| Monitoring |
currents and voltage outputs |
| Recording |
analog outputs, binary inputs/outputs status |
| Mode |
real time monitoring, no external wiring is required |
| Recording length |
unlimited (until the internal memory is full) |
Power Supply
| Nominal input voltage |
customized (AC230V/120V±10%, 1-phase) |
| Nominal frequency |
50/60 Hz |
| Rated current |
10A at 230V / 12A at 120V |
| Connection |
Standard AC socket (IEC 60320) |
Environmental Conditions
| Operation temperature |
0 ... +50 °C (+32 ... +122 °F) |
| Storage temperature |
-25 ... +70 °C (-13 ... +158 °F) |
| Humidity range |
relative humidity 5 ... 95 %, non-condensing |
| Vibration |
IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
Miscellaneous
| Weight |
19.5kg(42.99 lb) |
| Dimensions (W x H x D, without handle) |
405×295×250mm(15.94x11.61x9.84 in) |
Safety Standards, Electromagnetic Compatibility
| EMC |
The product adheres to the electromagnetic compatibility (EMC) Directive 2004/108/EC(CE conform). |
| The product adheres to the low voltage Directive 2006/95/EC(CE conform). |
| Safety |
IEC 61326-1; IEC 61000-6-4; IEC 61000-3-2/3 |
| IEC 61010-1 |
The RELAYSTAR-7000 is a multipurpose and field portable relay test system for testing electro-mechanical, solid-state and microprocessor-based protection relays, IEC61850 IEDs and merging unit in power plant, both conventional substation and smart substation.
